Otis Elevator Replacement Parts/ Gears
OT 205C3
OEM 205C3
Gear & Sprocket Assembly,
40 Teeth, 3.500" O.D., 3.333" P.D., 5/8" Wide Gear, 11/32" x 1-9/16" Dia. Hub, 40 Tooth
Sprocket, 5/8" Pitch, .400" Roller Dia., 2.700" O.D., 2.415" P.D., .348" Wide, 1-13/32" O/A
Width, 1" Dia. Bore, Complete with (1) 335E3 Bushing

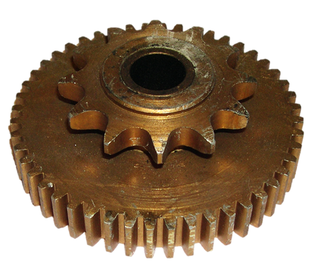

OT 205C4
OEM 205C4
Gear & Sprocket Assembly,
48 Teeth, 4.165" O.D., 0.75" I.D.,
Complete with (1) 335E3 Bushing, Use for 6850 Selector
OT 205C8
OEM 205C8
Gear & Sprocket Assembly,
40 Teeth, 3.56" O.D., 0.87" I.D.
Complete with (2) 172CY8 Truarc Internal Rings, Use for 6850 Selector

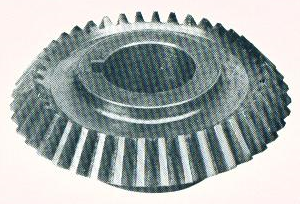

OT 202BP1
OEM 202BP1
Gear, Bevel Pinion, 40 Teeth, 3.467" O.D., 3.333" P.D. 1.067" O/A Length, 2" O.D. x 9/16" Hub., 1.124" Bore with 9/64" x .247" Keyway, For 6850 Selector

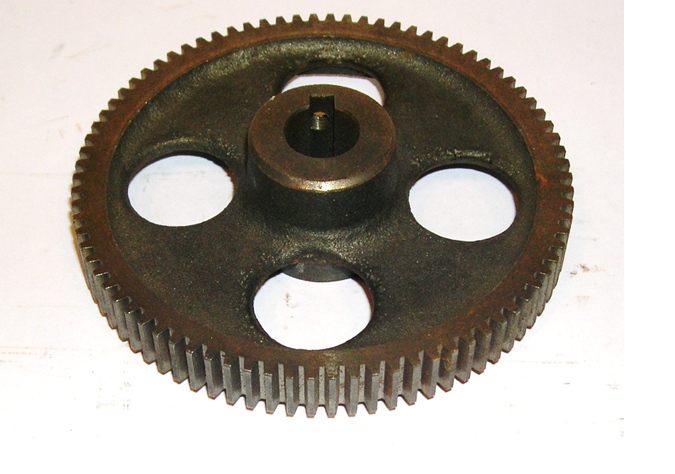

OT 201BR1
OEM 201BR1
Gear, 82 Teeth, 5.25" O.D., 0.75" I.D.for 6850 Selector

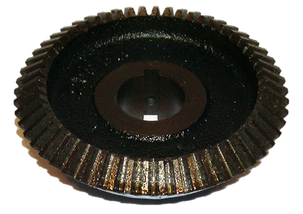

OT 202BR1
OEM 202BR1
Gear, Bevel Pinion, 52 Teeth, 4.59" O.D., 1.12" I.D. For 6850 Selector
OT 202BS4
OEM 202BS4
Gear, 23 Teeth, 2.08" O.D., 0.62" I.D. For 6850 Selector
OT 202BS2
OEM 202BS2
Gear, 15 Teeth, 1.41" O.D., 0.62" I.D. For 6850 Selector
OT 201R1
OEM 201R1
Gear, 8 Teeth, 0.88" O.D., 0.31" I.D. For 6850 Selector
OT 201BS1
OEM 201BS1
Gear, 23 Teeth, 2.08" O.D., 0.62" I.D. for 6850 Selector
OT 201BV2
OEM 201BV2
Gear, 12 Teeth, 0.70" O.D., 0.31" I.D. for 6850 Selector
