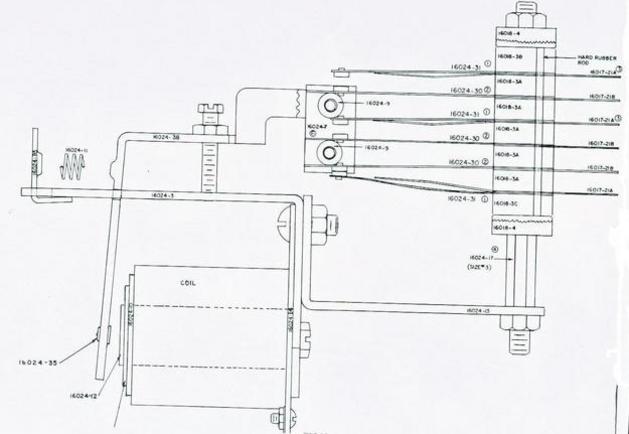

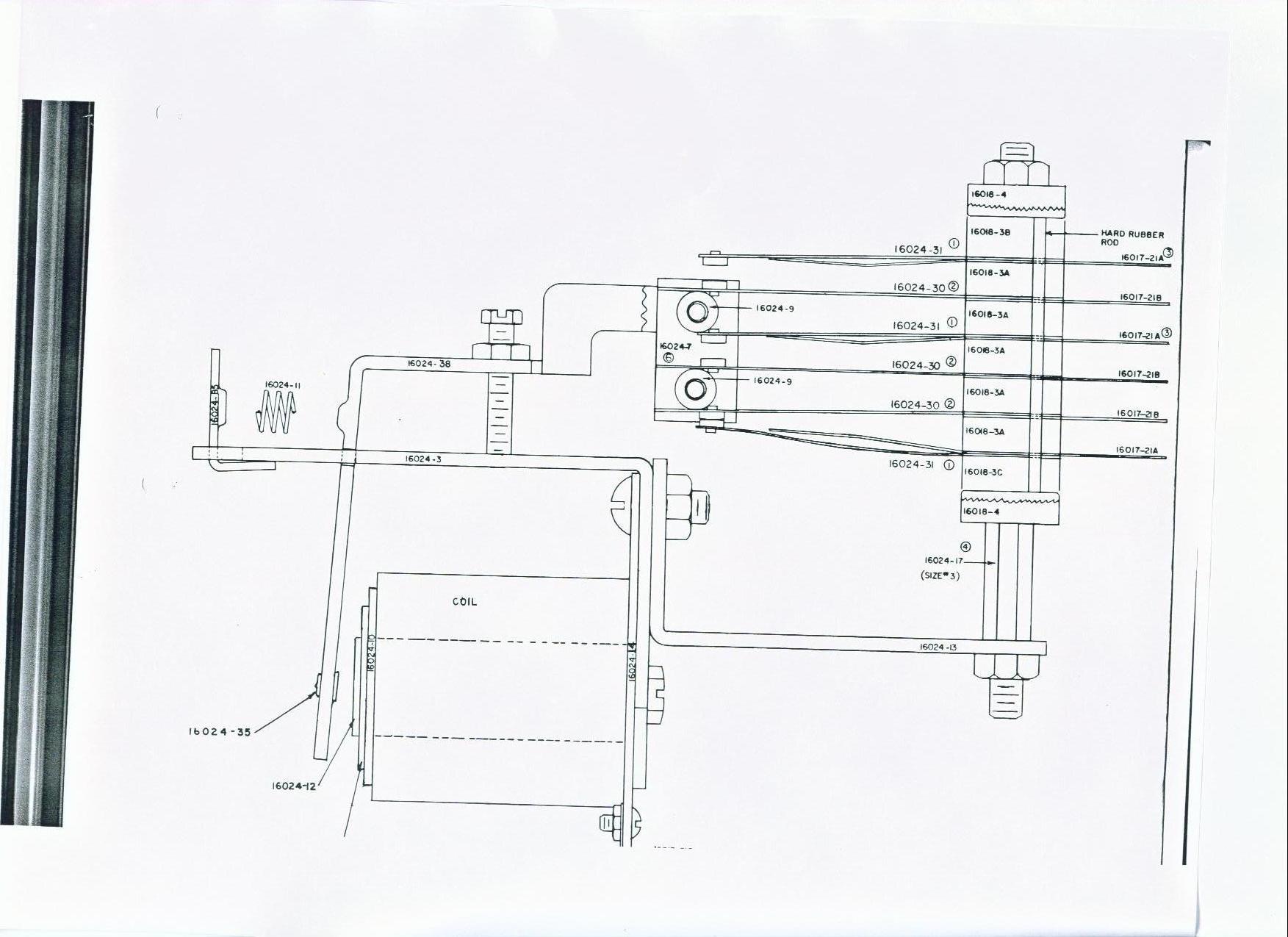

Staley/ MS2 DC Relay Assembly No. 16024 DC
Part No. Name of Part
16024-3 Relay Frame
16024-B5 Spring Retainer
16024-7 Yoke Insulator
16024-9 Contact Actuator
16024-10 Coil Retaining Insulator
16024-11 Spring
16024-12 DC Relay Core
16024-13 Support Angle
16024-14 Coil Terminal Mount DC
16024-16 Yoke Insulator
16024-17 Headbolt
16024-30 Contact Blade Silver Cadmium Oxide
16024-31 Contact Blade Silver Cadmium Oxide
16024-35 Non Magnetic Rivet
16024-38 Armature DC
16018-3A Contact Spacer-Insulator Intermediate
16018-3C Contact Spacer-Insulator Bottom
16018-4 Contact Head Bar
16017-21B Wiring Finger
16017-21C Wiring Finger
Photos of Parts:
ST 16024-DC
OEM # 16024 DC
MS2 DC Relay Assembly without Contacts

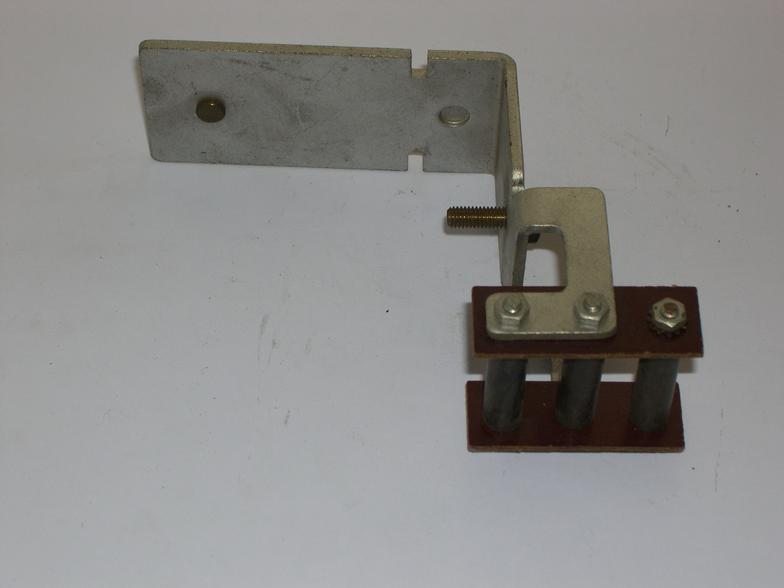

ST 16024-38
