OTIS Elevator Replacement Parts/ Coils
Brake and Magnet Coils
OT 222AD2
OEM# 222AD2
Magnet Coil, 5-1/4" Long x 5-3/4" Diameter
OT 222KA5
OEM# 222KA5
Brake & Retiring Cam Coil
137 Ohms, Description: 6300-23
OT 222J14
OEM# 222J14
Brake Coil, 84 Ohms,
4880 Turns, 21 Gage
4-1/32" I.D., 6-1/4"O.D., 5-3/4" L
OT 222J9
OEM# 222J9
Brake Coil, 373 Ohms,
4-1/32" I.D., 6-1/4"O.D., 5-3/4" L
#1-S Magnet Coils
OT 136228
OEM# 136228
235 Ohms,
#1-S Magnet, Copper

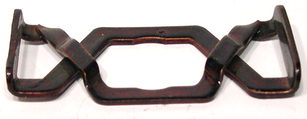

Blowout Coils
OT A222Y1
OEM# A222Y1
0.03 Ohms,
Magnet blowout RH, used for 6163 switch
OT A222Y2
OEM# A222Y2
0.03 Ohms,
Magnet blowout LH, used for 6163 switch
OT A222DB1
OEM# A222DB1
0.04 Ohms,
6754 Magnet switch, 2.0"O.D., 3/8" wide copper strip, rating 15-19 Amps, contact side 5-6; Right Hand
OT A222DB2
OEM# A222DB2
0.04 Ohms,
6754 Magnet switch, 2.0"O.D., 3/8" wide copper strip, rating 15-19 Amps, contact side 5-6; Left Hand
OT A222DB4
OEM# A222DB4
0.03 Ohms,
6754 Magnet switch, 2.0"O.D., 3/8" wide copper strip, rating 20-24 = Amps, contact side 1-2; Left Hand
Magnet Coil
OT 222DS6
OEM# 222DS6
0.0108 Ohms,
Magnet, 1-5/16" diameter x
1-3/8" Long
OT 222CA3
OEM# 222CA3
500 Ohms,
3" x 1-1/2" x 15/16"
Magnet coil, used for 6316C
magnet switch

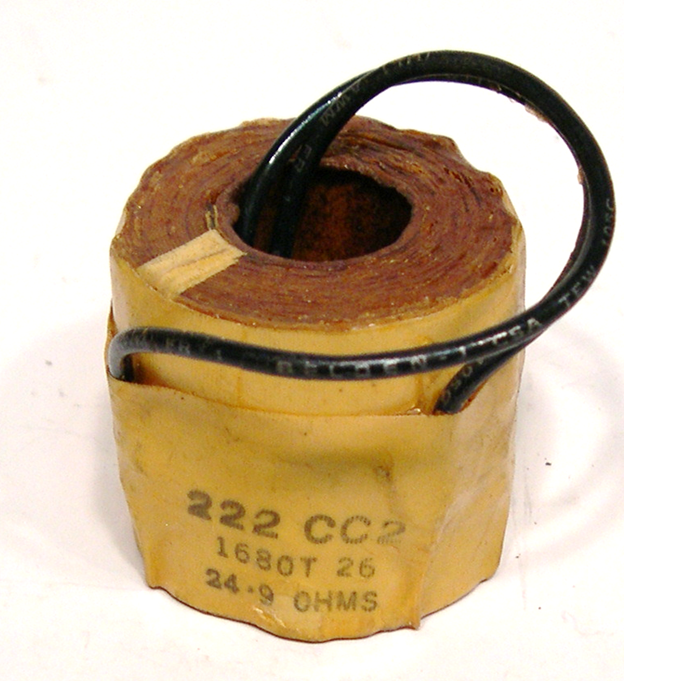

OT 222CC2
OEM# 222CC2
24.9 Ohms,
1680 T 26
Magnet Used for Reverse Phase Relay
OT 222CC3
OEM# 222CC3
35 Ohms,
1930 T 27
Magnet Used for Reverse Phase Relay
Phase Splitting Coils
OT 138142
OEM# 138142
Phase Splitting, 1-1/16" wide, 2 5/16" long used for O-D-6 switches
OT 222DE1
OEM# 222DE1
585 Ohms,
Out: 1350 T 32 108
In: 7660 T 32 477
Magnet Coil
